Workflow Runs
Last updated
Last updated

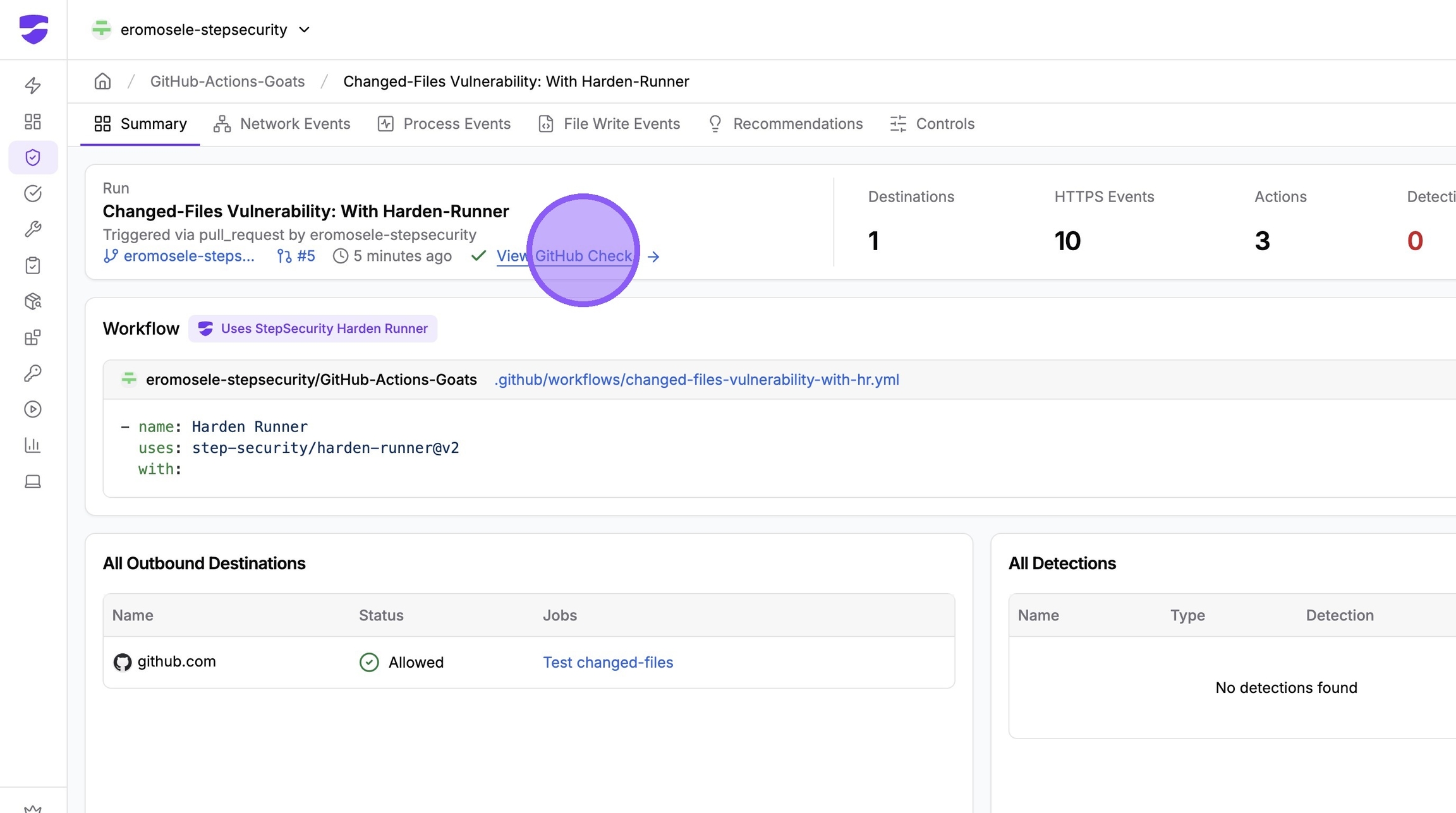

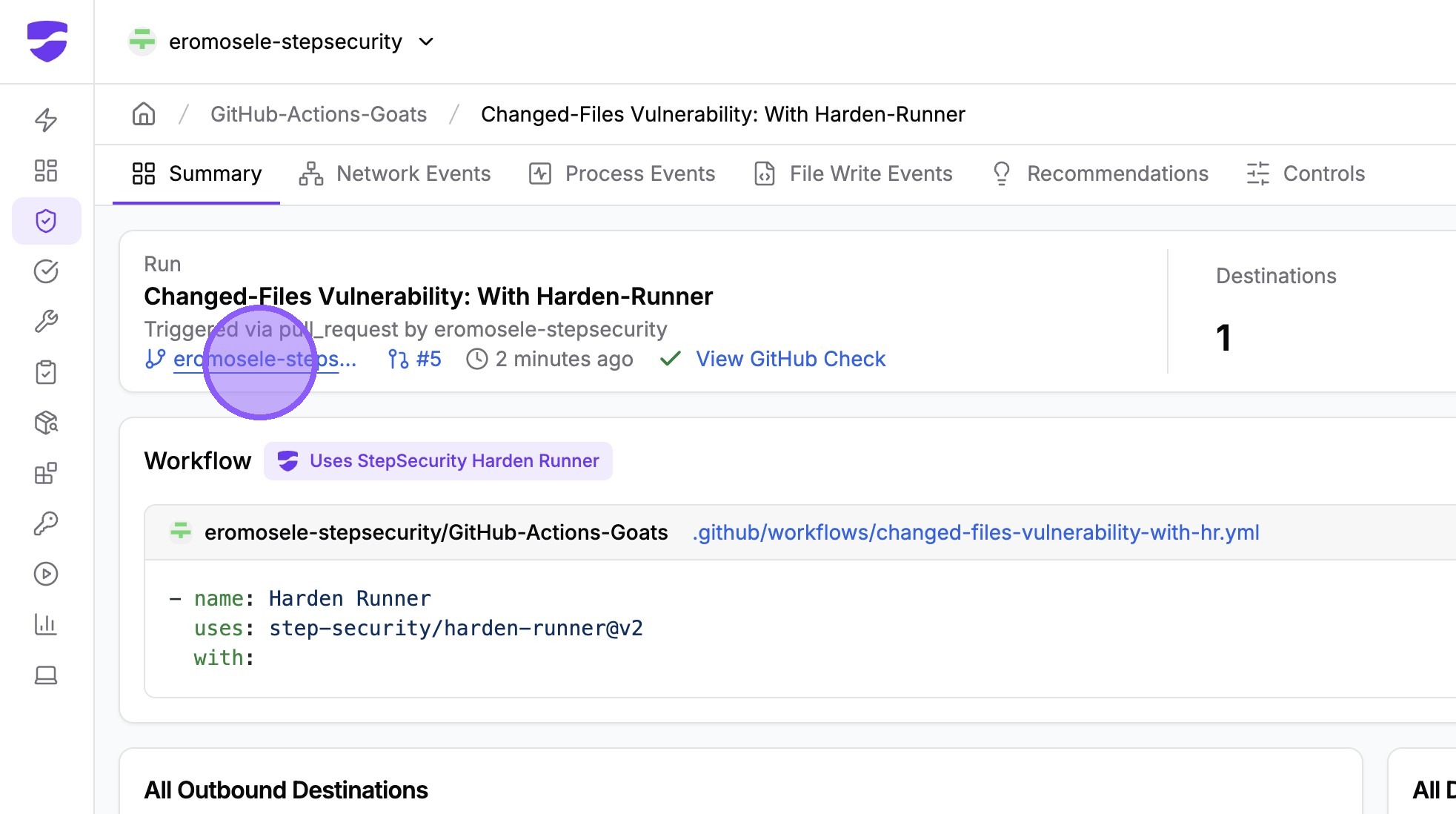

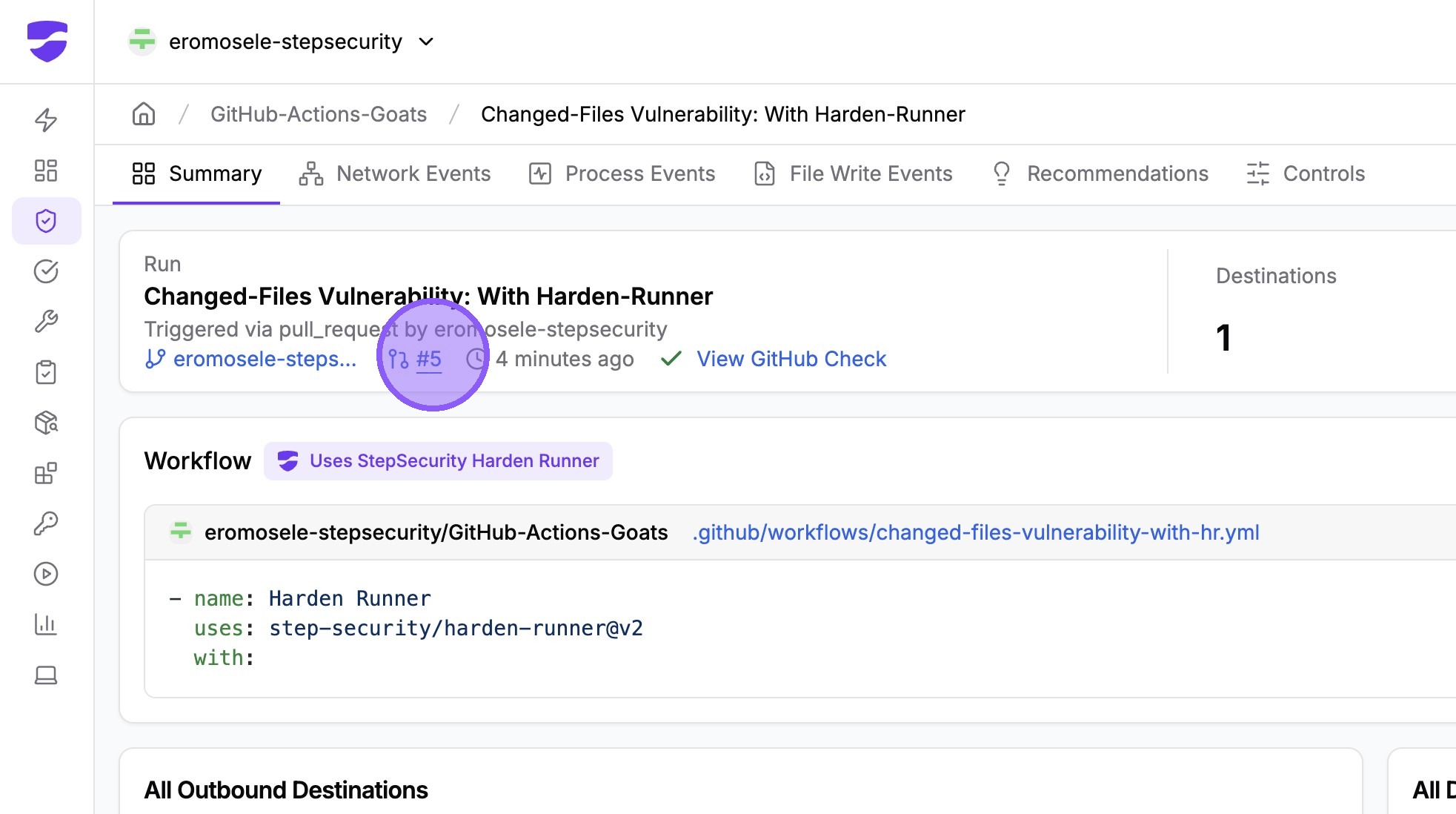

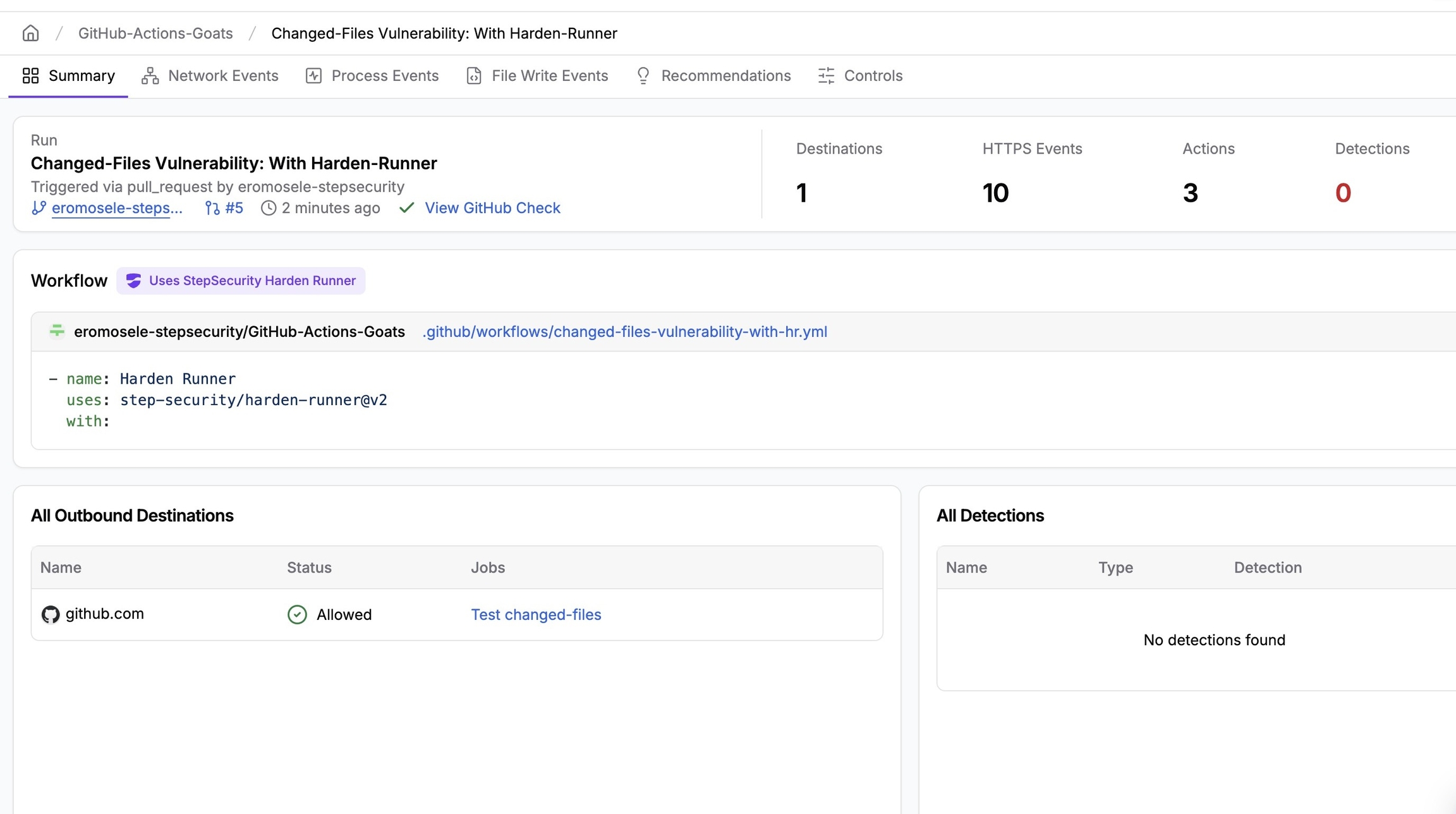

The Workflow Run Details page provides an in-depth view of each CI/CD job execution, including network activity, file modifications, and security detections. It highlights key security metrics, outbound destinations, and policy recommendations, helping you monitor and secure your workflows effectively.
Empty/No Tag: No detections were found; Harden-Runner is functioning as expected.
Harden-Runner Not Enabled: Harden-Runner is not active in your workflow.
Overwritten File: A file in the workflow has been overwritten.
Jobs Without Harden-Runner: At least one job in the workflow lacks Harden-Runner coverage.
Blocked Call: An endpoint has been blocked.
New Endpoint: A network call deviated from the baseline, indicating potential anomalies.
✅
✅
✅
✅
✅
✅
✅
✅
✅
✅
✅
✅
❌
✅
❌
✅
❌
✅
❌
✅

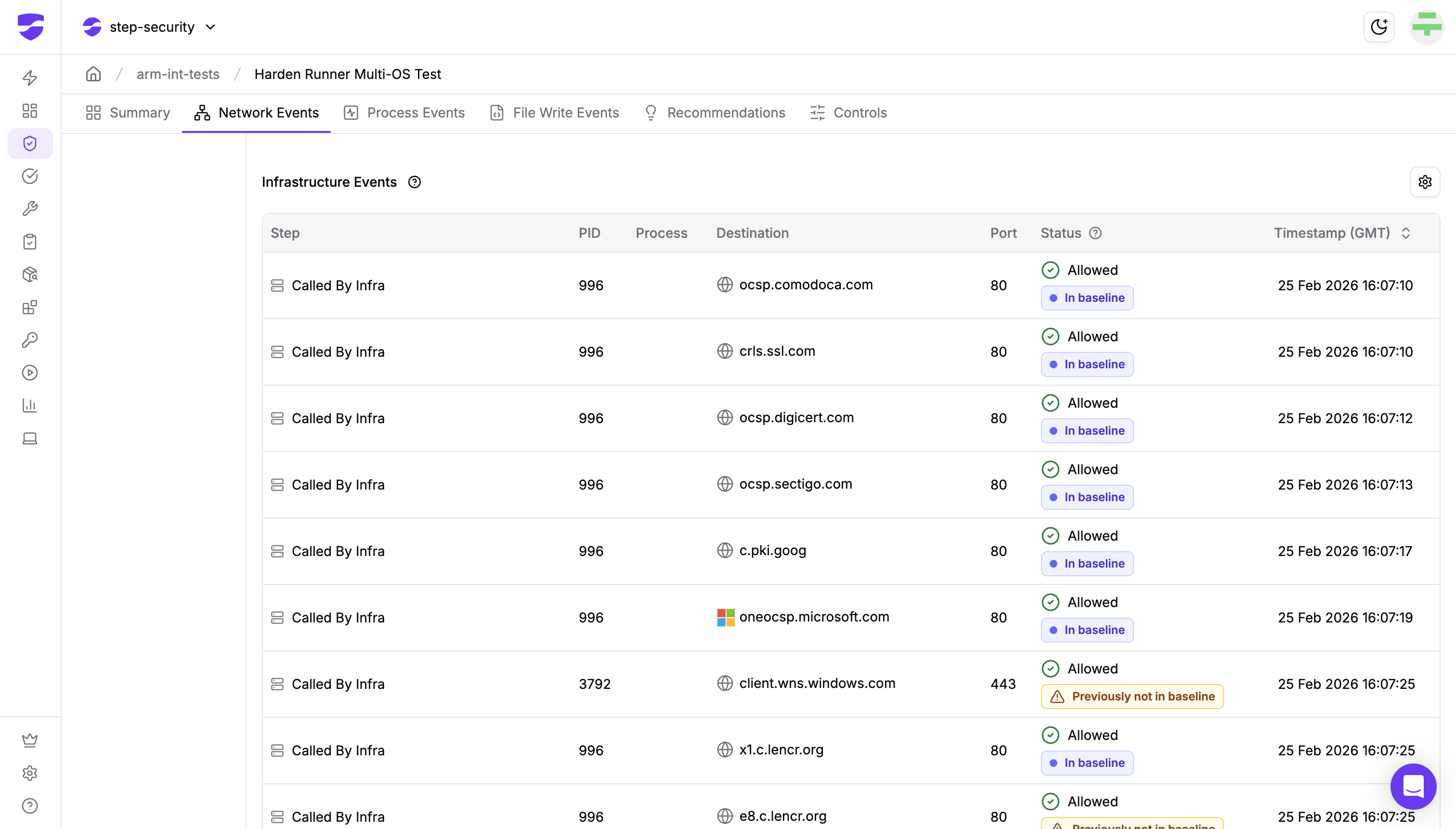

Harden-Runner monitors all outbound traffic from each job at the DNS and network layers
After the workflow completes, each outbound call is correlated with each step of the job, and shown in the insights page
For self-hosted runners, no changes are needed to workflow files to monitor egress traffic
A filtering (block) egress policy is suggested in the insights page based on the current and past job runs

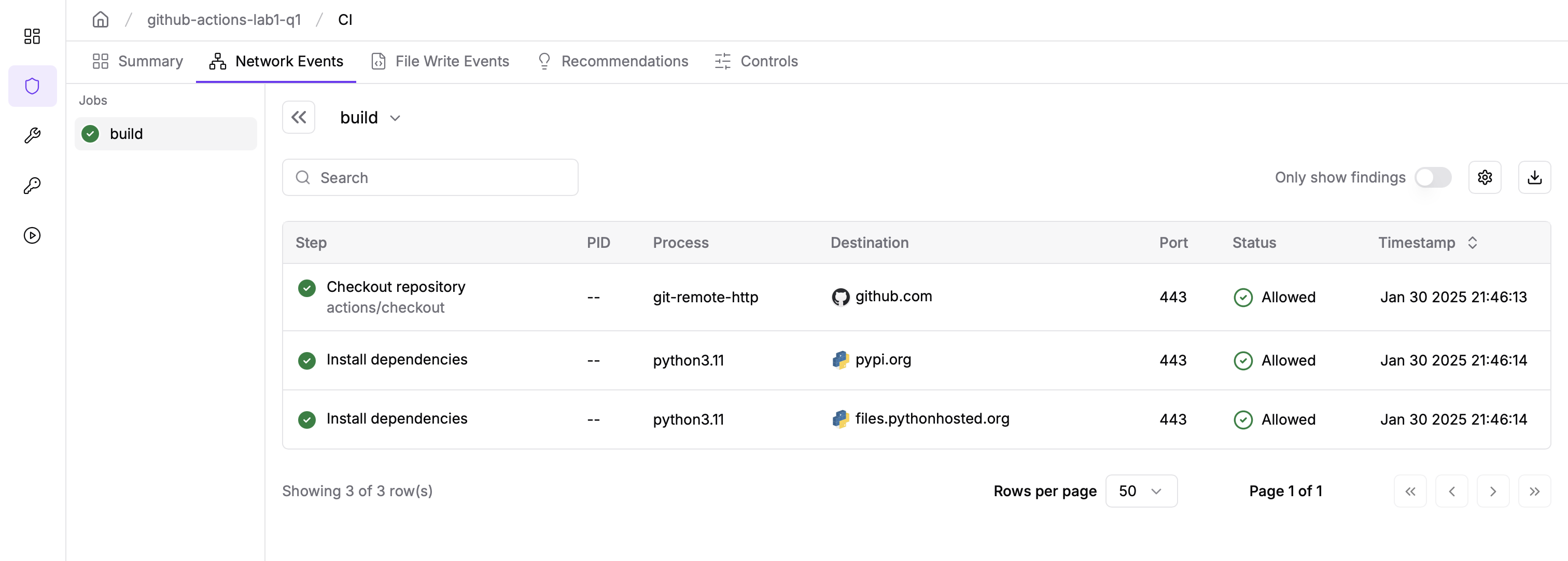

To access this feature switch to the Network Events tab on your Insights page
For the Enterprise Tier, the PID is available, and you can click on it to view the process arguments
You can detect suspicious/ anomalous traffic using this feature even in egress-policy:audit mode.
To access this feature switch to the Recommendations tab on your Insights page
Anomaly detection feature creates a machine learning model of outbound network calls by analyzing the historical data of the same workflow in previous runs

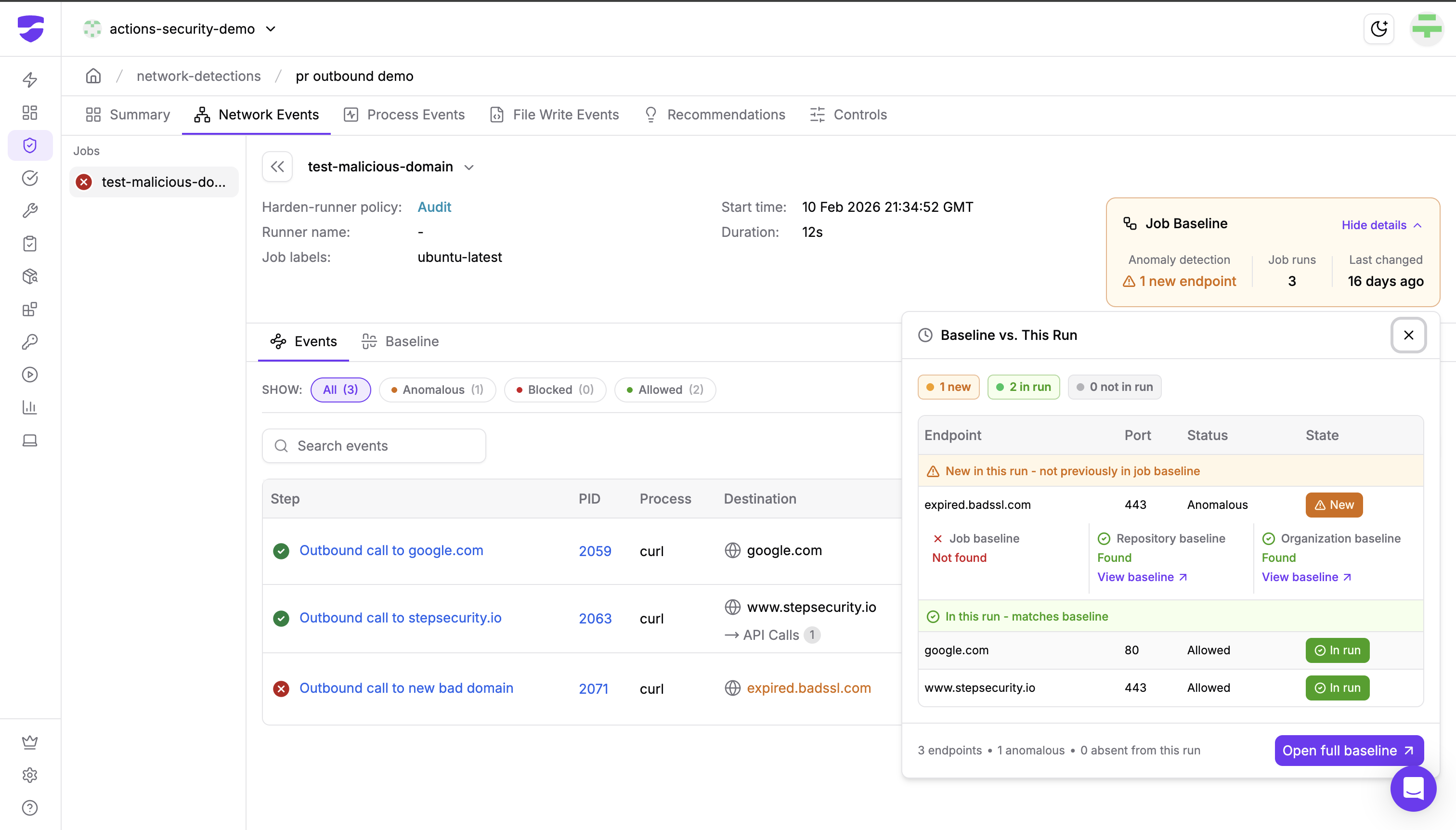

Once the baseline is established, any anomalous outbound destinations are flagged on the insights page, triggering real-time alerts
You can view the list of all anomalous outbound network traffic in the All Detections page on the dashboard
For more details, refer to Anomalous Outbound Call Detection Using Machine Learning

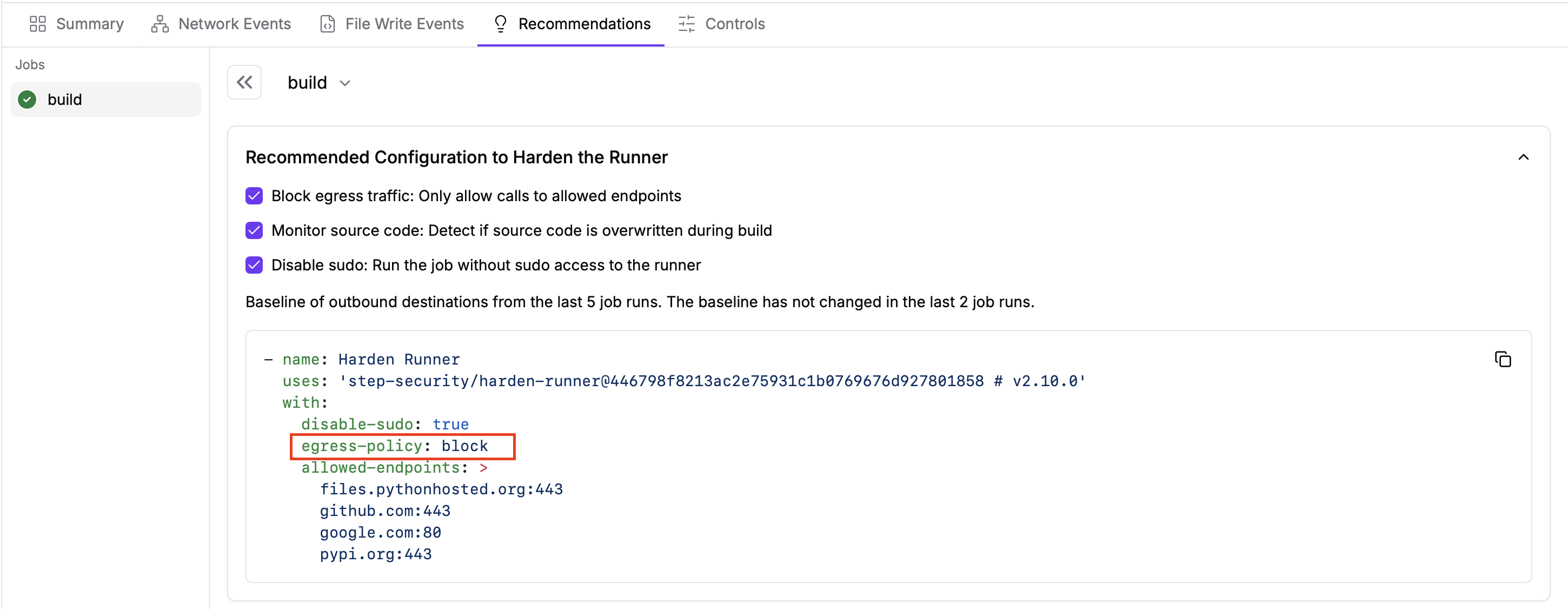

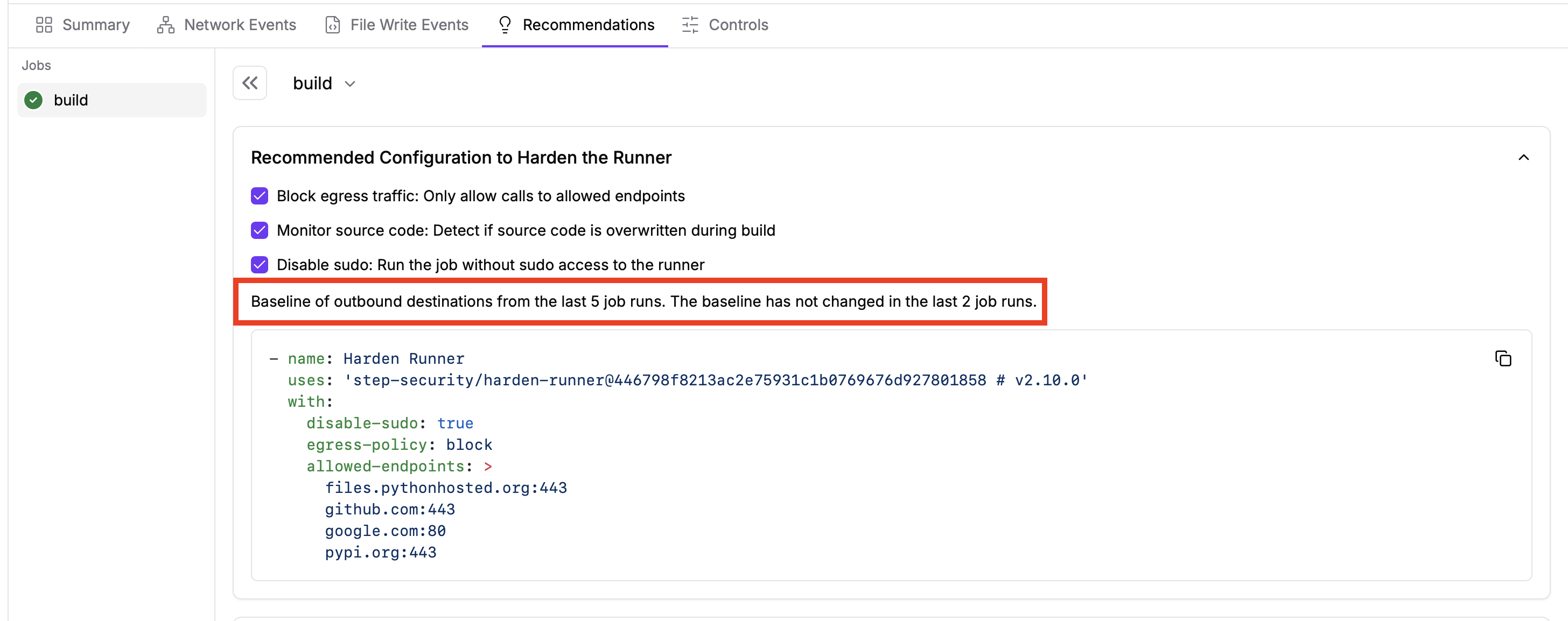

You can see recommended egress block policy in the Recommendations tab for each job. This is based on observed traffic across multiple runs of the job.
Once you set these allowed endpoints in the workflow file, or in the Policy Store(Need to understand this more) and switch to using egress-policy:block
Harden-Runner blocks egress traffic at the DNS (Layer 7) and network layers (Layers 3 and 4)
It blocks DNS exfiltration, where attacker tries to send data out using DNS resolution
Wildcard domains are supported, e.g. you can add *.data.mcr.microsoft.com:443 to the allowed list, and egress traffic will be allowed to eastus.data.mcr.microsoft.com:443 and westus.data.mcr.microsoft.com:443
Harden Runner sends telemetry related to egress traffic to the StepSecurity API, e.g.
Domain names resolved,
IP addresses called, and
Processes that made these calls
This telemetry is used to render the insights page.
When you use egress-policy: block mode, and if you do not want this telemetry to be sent anymore, you can set disable-telemetry: true.
When this is done, telemetry will no longer be sent to StepSecurity API.
Here is an example of how to use disable-telemetry: true
Harden-Runner monitors file writes and detects if any source code files are overwritten during a build.
Source code overwrites are unexpected in a release build.
All source code files are monitored, including infrastructure-as-code (IaC) files such as Kubernetes manifests and Terraform configurations.
Notifications can be enabled to receive alerts when source code modifications occur.
No additional changes are needed for self-hosted runners to enable file monitoring.

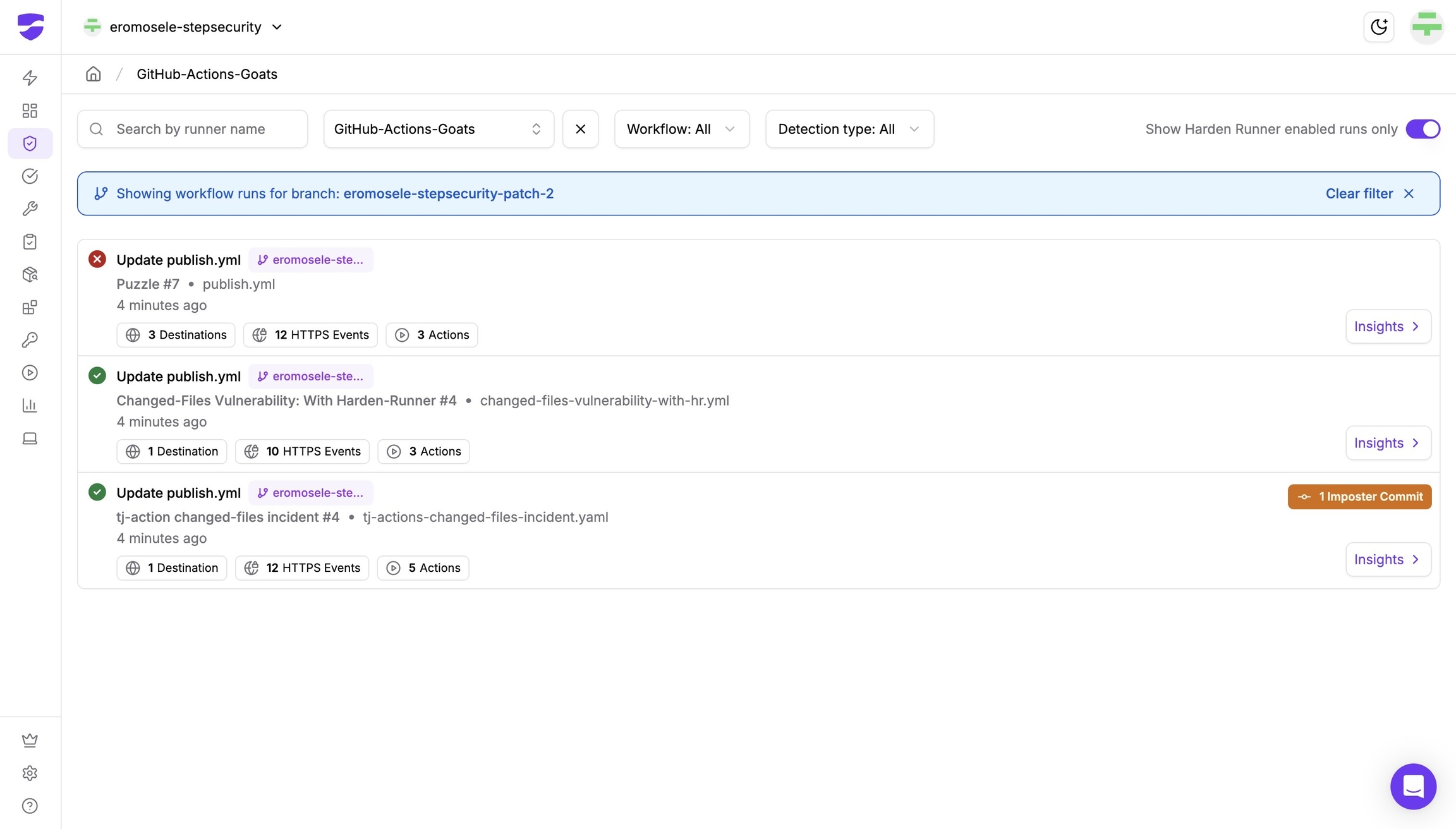

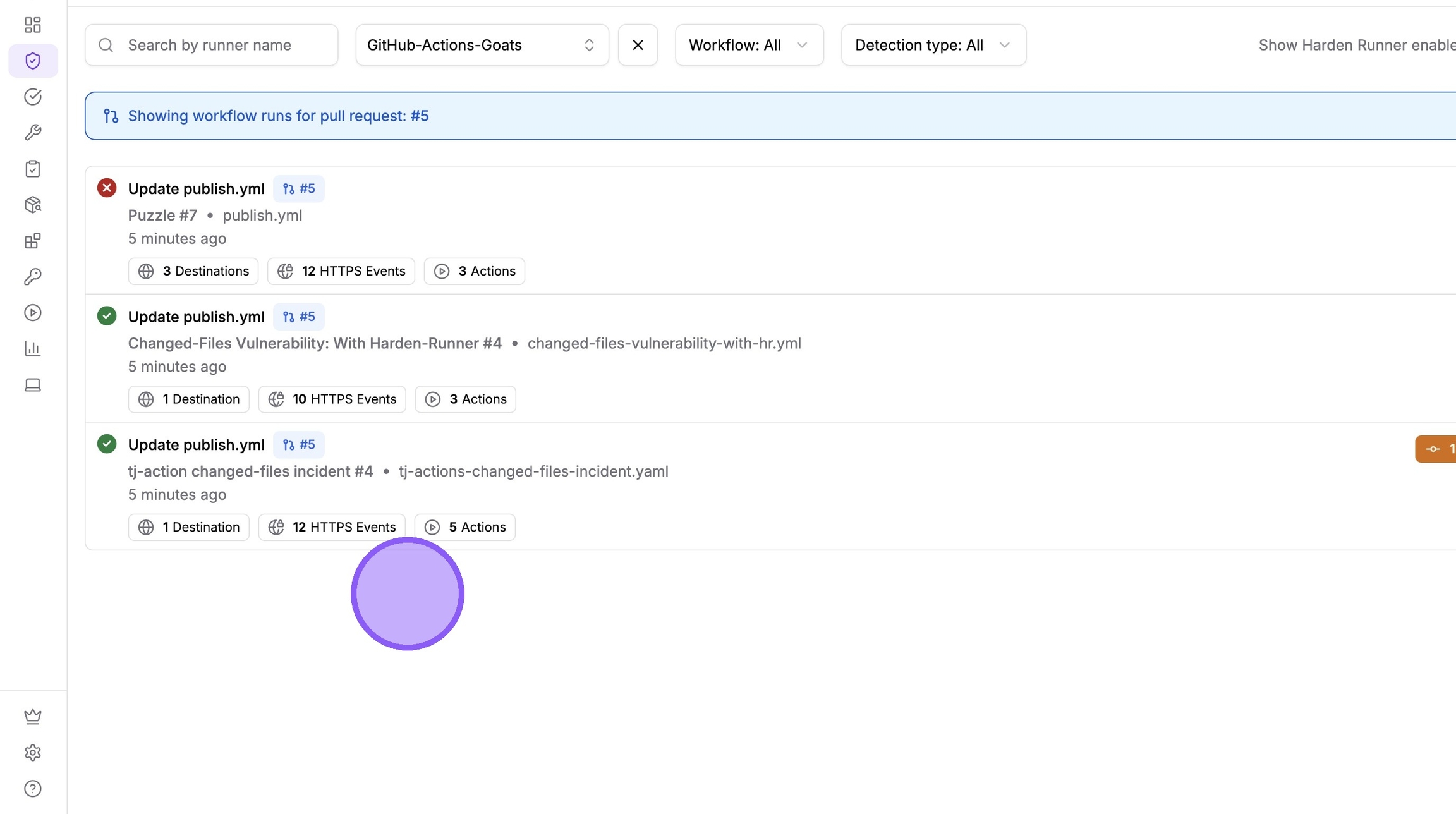

Step 1: Access the Workflow Runs

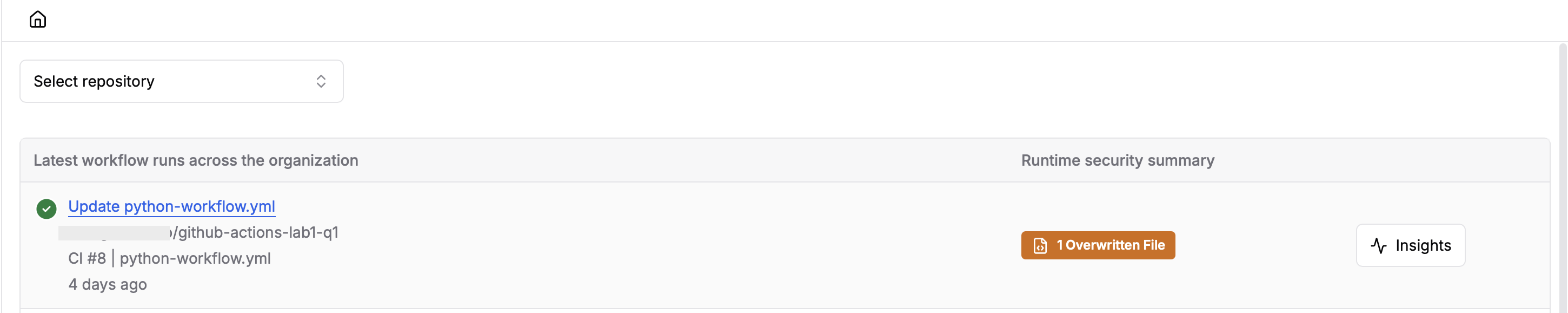

Navigate to Latest Workflow Runs under the Harden-Runner menu in your StepSecurity dashboard. If any files were overwritten, you’ll see an alert similar to this:
Step 2: View File Write Events
Click on the workflow insights

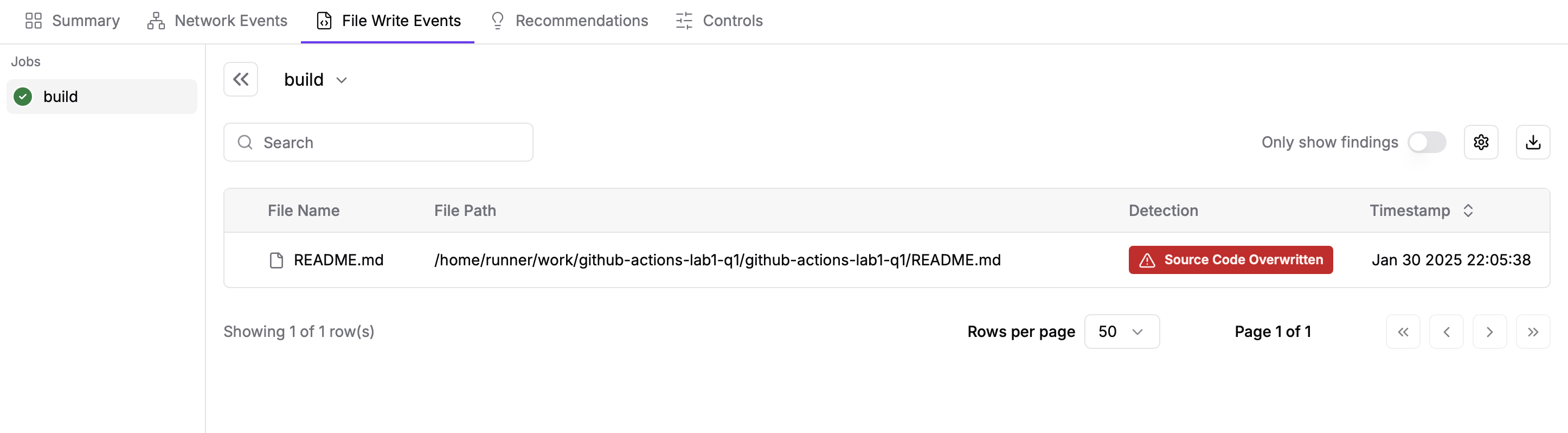

Go to the File Write Events tab
You’ll see a list of overwritten files, including their paths and timestamps.
Enterprise-tier users get additional details such as:
The process that wrote to the file.
The arguments passed during the write operation.
Step 3: Investigate the Overwrite
Identify the file and its path.
Review the detection timestamp for when the overwrite occurred.
If unexpected, trigger a security review or rollback to a safe commit.
GitHub-hosted runner uses passwordless sudo for running jobs.
This means compromised build tools or dependencies can install attack tools
Harden-Runner monitors the use of sudo during Action workflow runs. If your job does not need sudo access, you see a policy recommendation to disable sudo in the insights page
When you set disable-sudo to true, the job steps run without sudo access to the GitHub-hosted Ubuntu VM. If a job attempts to use the sudo command, the CI will fail.
To access this feature switch to the Recommendations tab on your Insights page
Available for Enterprise Tier Users only
This feature provides visibility into outbound GitHub API calls made during a job execution. It logs details such as HTTP methods and request paths, helping detect any unauthorized data exfiltration attempts through GitHub.com .
Clicking on any Destination in the Network Events tab reveals detailed information about the process that initiated the event, along with its process arguments.
This allows you to:
Identify which processes are making outbound requests.
Inspect HTTP methods and API endpoints used.
Monitor network activity for potential security concerns.

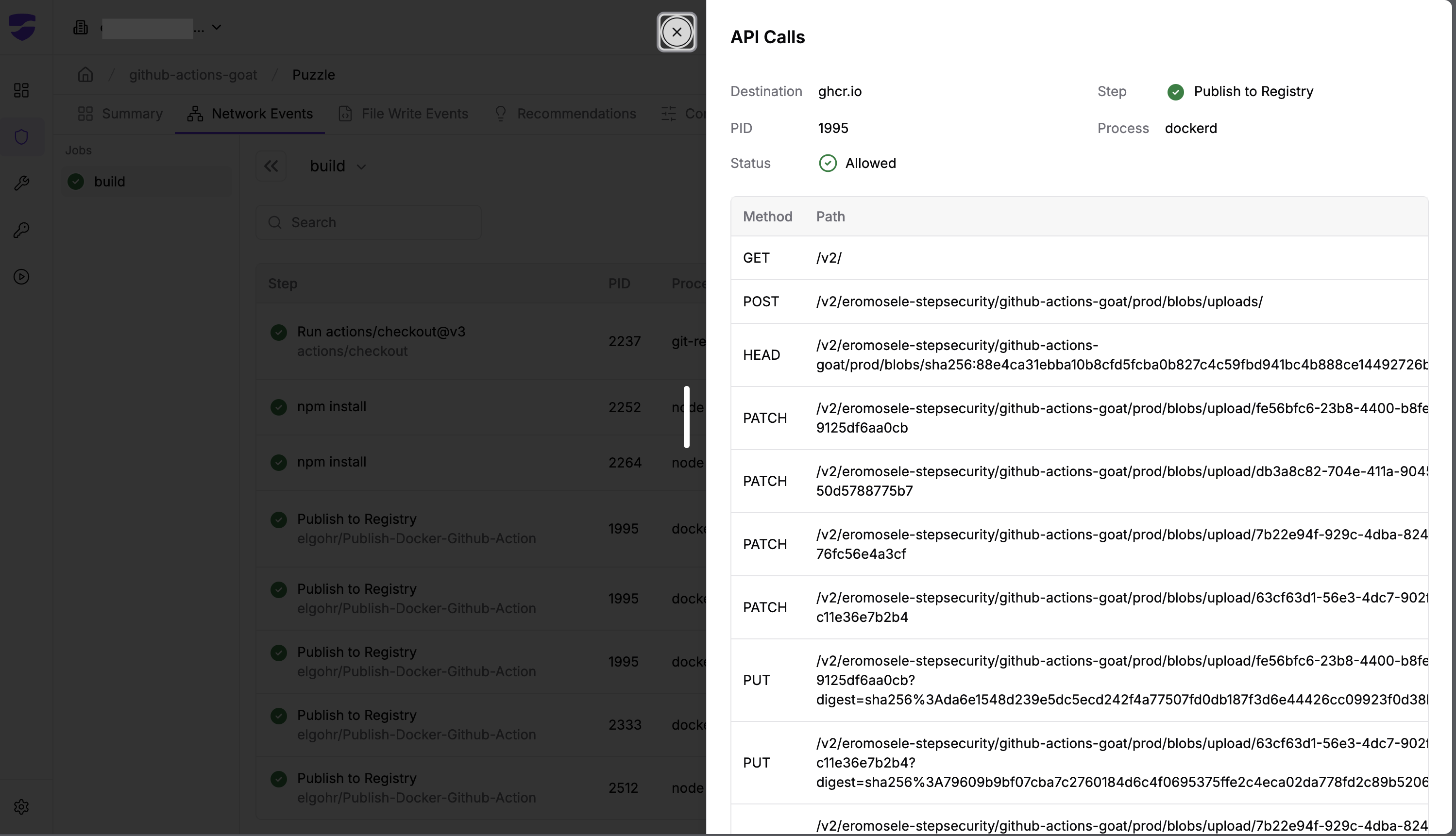

For example, in the screenshot below, clicking on ghcr.io under the Destination column reveals detailed API call logs, including HTTP methods such as GET, POST, HEAD, PATCH, and PUT. This visibility helps track and analyze API interactions effectively.
Available for Enterprise Tier users only
Harden-Runner monitors outbound HTTPS requests using eBPF and uses the PATHs and VERBs of these HTTPS calls to recommend the minimum GITHUB_TOKEN permissions for each job in your workflow.
GITHUB_TOKEN is an automatically generated secret used to authenticate to GitHub APIs from GitHub Actions workflows.
Harden-Runner can monitor the VERBs (e.g., GET, POST) and PATHs (e.g., /repos/owner/repo/issues) for calls made to the GitHub APIs from the runner.
Each GitHub Actions API call requires a corresponding GITHUB_TOKEN permission. For instance, a GET request to the /repos/org/repo/info/refs?service=git-upload-pack endpoint requires the contents: read permission.

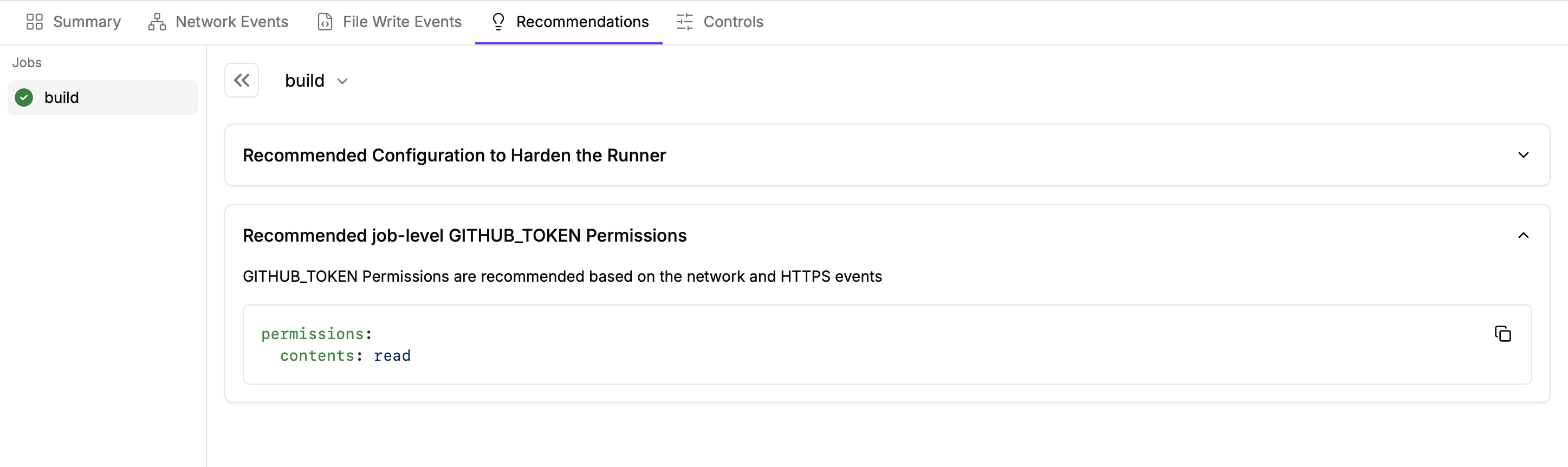

The recommendation for the minimum GITHUB_TOKEN permissions are show in the Recommendations tab.
For more details, refer to Determine Minimum GITHUB_TOKEN Permissions Using eBPF with Harden-Runner.
Available for Enterprise Tier users only
View the name and path of every file that was written during the build process.
Harden-Runner tracks every file written to the GitHub Actions working directory during the build process.
In the insights page in the File Write Events tab you can see a file explorer view of each file that was written to.
Clicking on any file reveals a list of processes that wrote to it, providing complete transparency.
Available for Enterprise Tier Users only
Gain deeper insights into your build environment by viewing process names, Process IDs (PIDs), and process arguments.
To access this feature switch to the Network Events tab on your Insights page

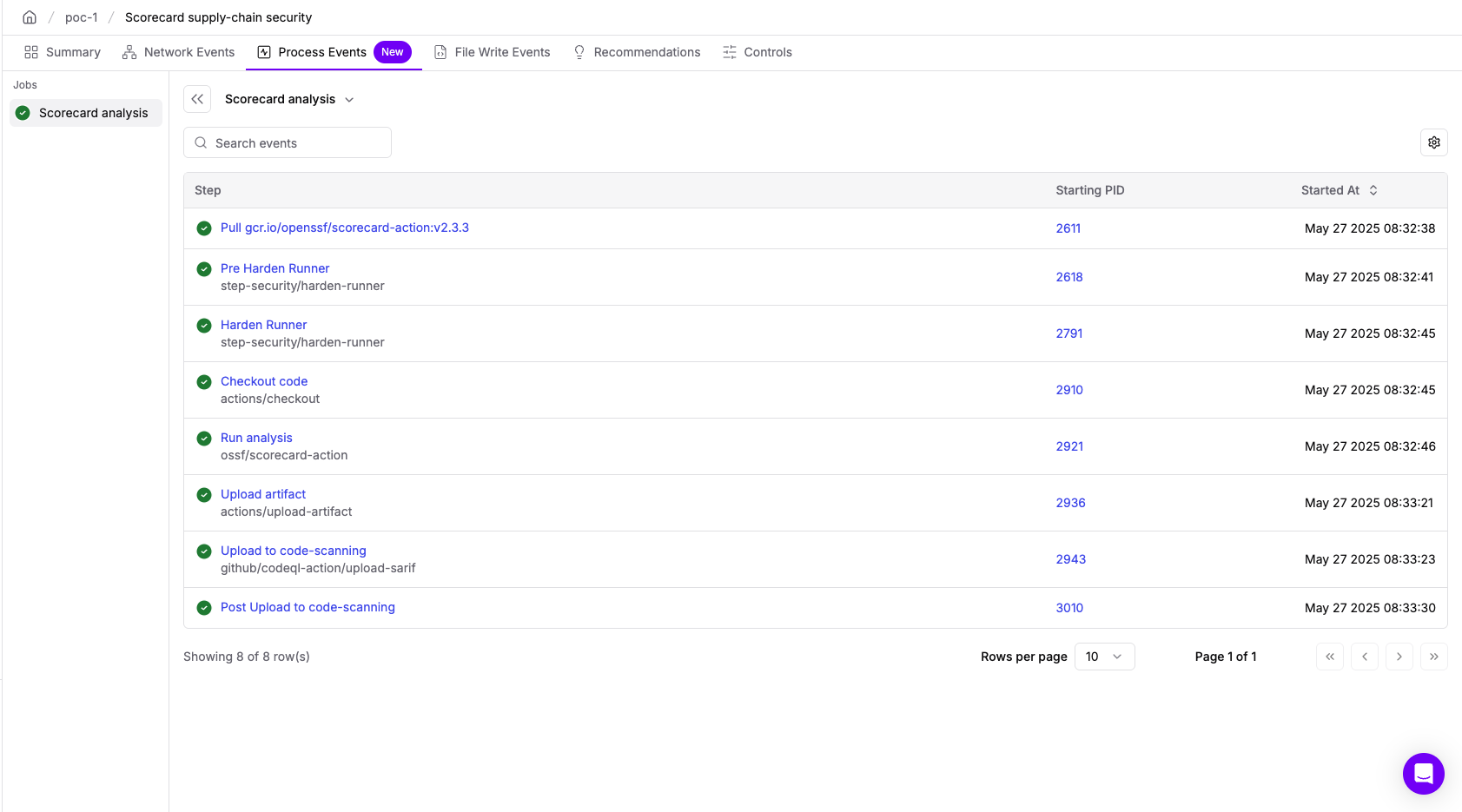

Harden-Runner tracks every process that is run during the build process.

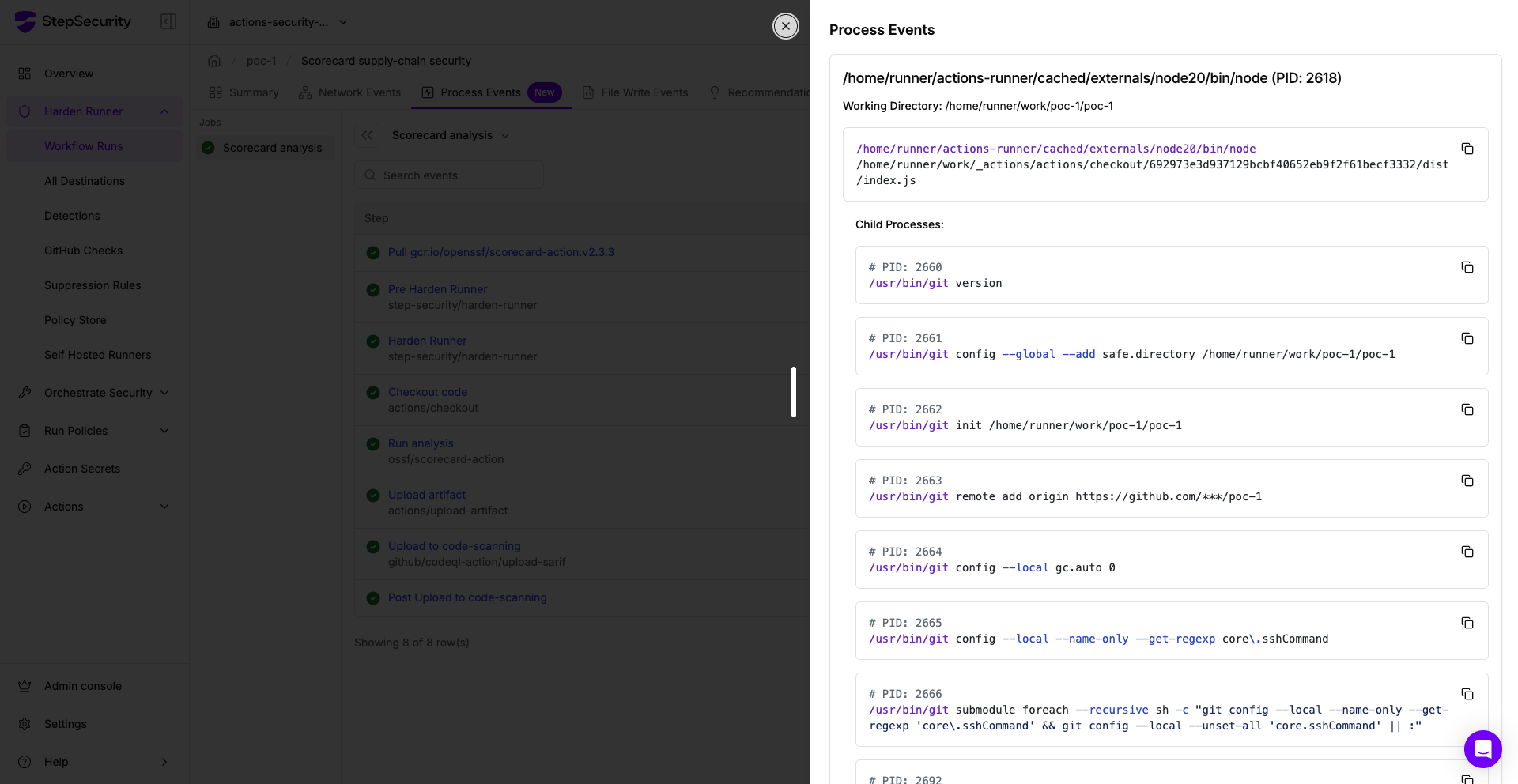

Clicking on any process ID (PID) in the network events shows the process that caused the event, along with the process arguments.
You can walk up the process tree to analyze parent-child relationships, helping you detect suspicious activity and understand how processes interact.
